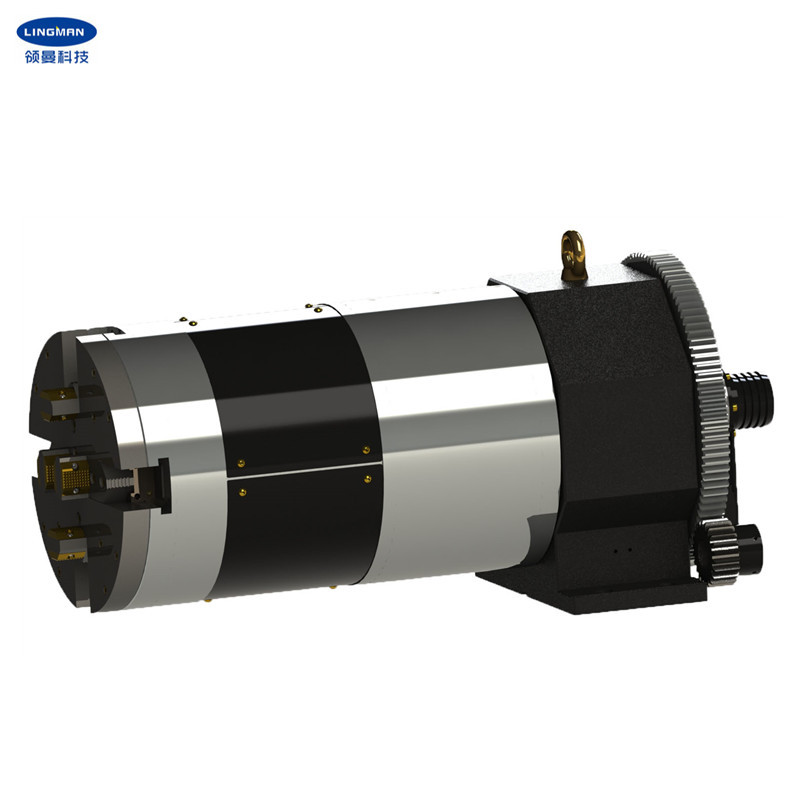

Laser Cutting Machine Chuck with Four Jaw Double Action Pneumatic Chuck for Laser Cutting Machine
1. Description
We are a professional supplier focusing on R&D, production and sales of various pneumatic chucks, electric chucks and other power chucks for more than 10 years.
Our laser chuck is specially designed for laser tube cutting equipment. It can be used as an independent rotating spindle with a chuck which can firmly clamp workpiece and rotate simultaneously. Rotary air intake is achieved through the rotator equipped at the end to achieve fast clamping and loosening actions. The air source supplies air continuously during work.
The clamping force of the product is large, the clamping is stable; the adjustment is convenient, the efficiency is high; the rigidity is higher than a long clamping claw, the precision can be maintained for long time, and there is no phenomenon that the bending deformation of the clamping claw affects the rotary precision.
The center of the product is a through structure. In order to make the environment clean and hygienic, the product of this series can be equipped with a dust extraction device on the back.
2. Performance Parameters
| | W160T-23 |
| | 57mm |
| | 1.6KN |
| | 0.3-1MPa |
| | 400r/min |
| | 10-165mm |
| | 120mm |
| | 0.08g.m2 |
| | 24kg |
| | 43kg |
3. Dimensions
| Specifications | A | B | B1 | C | D | E | F | H | M | N | P | Q | S | T | G |
| W160T-23 | 200 | 120 | 164 | 258 | 106 | 70 | 185 | 23 | 30 | 3 | 12.5 | M6 | 18 | 397 | 628 |
4. Advantages
a. Full stroke design
b. Wide range of applications, diversification of processing profiles
c. High repetitive positioning accuracy
d. Low maintenance cost, long service life
e. Multiple configurations are available
e.1 Solid or hollow
e.2 Comb-type or mortise-groove type claws
